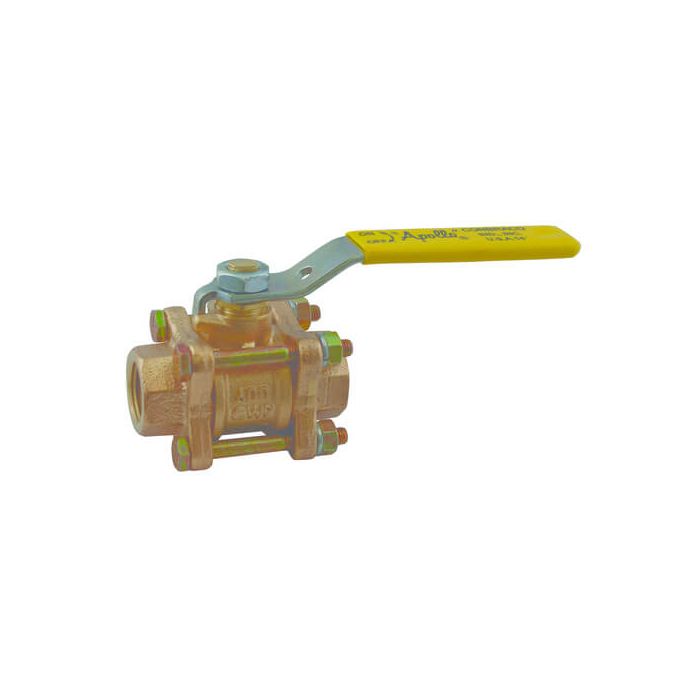

2-1/2" 3-Piece Full Port Threaded Ball Valve (510 Cv)
In stock
$1,480.48
[{"Product Highlights":"2-1/2\""},{"Product Highlights":"FNPT x FNPT Connection"},{"Product Highlights":"Bronze"},{"Product Highlights":"Lever"},{"Product Highlights":"No"},{"Product Highlights":"Full Port"}]
This inline-repairable threaded ball valve offers RPTFE seats and seals and a
600 CWP, non-shock rating.
Features:
Dezincification Resistant Bronze Body
Adjustable Packing Gland
Blow-Out Proof Stem Design
Premium RPTFE Seats and Seals
Full Port Ball Configuration in all sizes
Made in USA
Performance Rating:
Maximum Pressure:
82-100 series: 600 psi CWP, 150 psi SWP
82A-140 series: 400 psi CWP, 150 psi SWP
Maximum Temperature: 500°F
Vacuum Service to 29 in. Hg
Approvals:
MSS SP-110; Ball Valves, Threaded, Socket-Welding, Solder Joint, Grooved and Flared Ends
CSA B51 CRN: OC10908.5C
Hide Description
| Material | Bronze |
|---|---|
| Handle Style | Lever |
| Valve Construction | 3 piece |
| Size | 2-1/2" |
| Max Pressure PSI | 600 |
| Port Type | Full Port |
| Features | Standard |
| Thread Type | Female |
| Connection Type | FNPT x FNPT |
| Connection Method | Threaded |
| Application | Plumbing |
| Lead Free | No |
