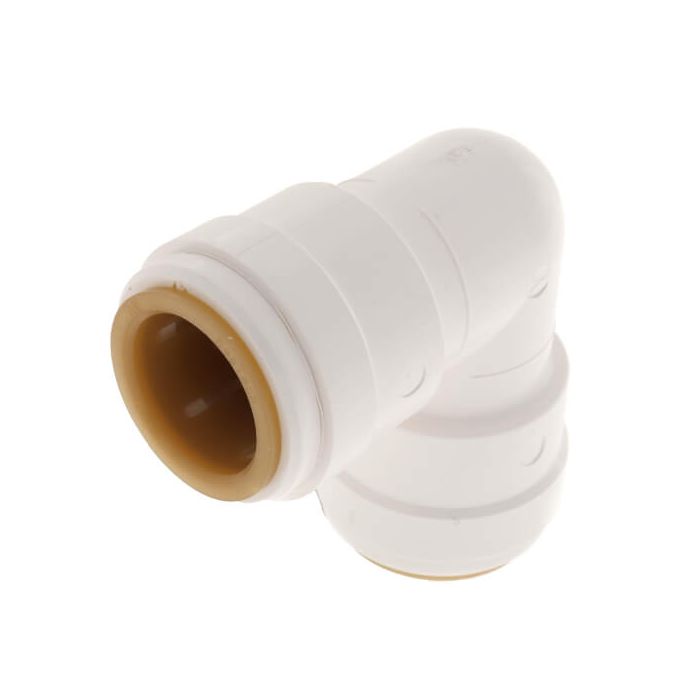

3/4" CTS Quick-Connect Union 90-Degree Elbow (3517-14)
In stock
$17.45
[{"Product Highlights":"3/4\""},{"Product Highlights":"Polysulfone"},{"Product Highlights":"OD Controlled Copper, PEX, CPVC, Polybutylene"},{"Product Highlights":"Push-Fit"},{"Product Highlights":"CAN/CSA B137.5, ASSE 1061, NSF, ASTM F877 Standards Met"},{"Product Highlights":"CTS Connection"}]
This 3/4 inch CTS AquaLock plastic elbow works with copper, CPVC, PEX, LPDE, MPDE, HDPE and polybutylene tubing. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.
Product Features
No tools required for installation or removal
Zero-leak connections
Can be used for hot and cold water applications, including behind the wall applications
25-year limited warranty
Works with copper, CPVC, PEX, LPDE, MPDE, HDPE and polybutylene tubing
Rotates under pressure
| Size | 3/4" |
|---|---|
| Max Pressure PSI | @75°F 250, @180°F 100 |
| Warranty | 25 Year Limited |
| Color | White |
| Material | Polysulfone |
| PEX Size | 3/4" |
