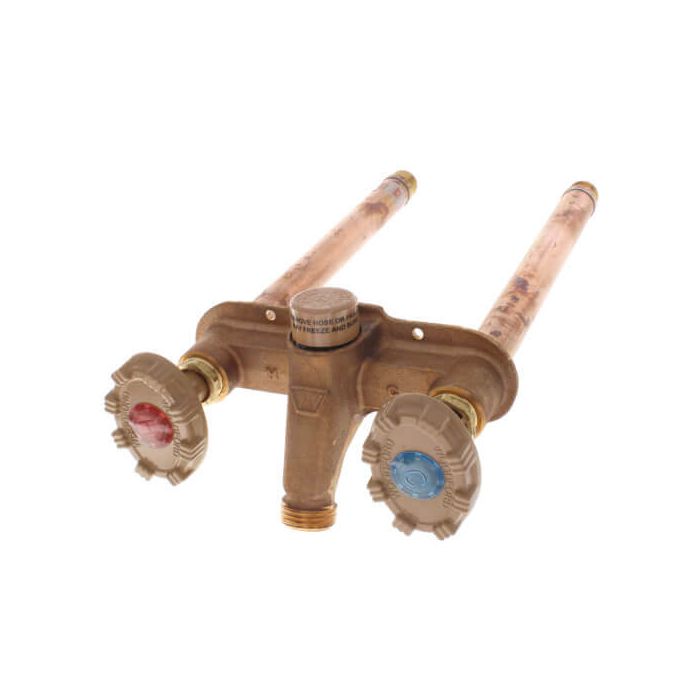

Model 22 6", 3/4 Expansion PEX Inlet Anti-Siphon Wall Faucet w/ Metal Handle
In stock
$159.89
[{"Product Highlights":"3/4\""},{"Product Highlights":"8-1/4\" Length"},{"Product Highlights":"ProPEX Connection"},{"Product Highlights":"6\""},{"Product Highlights":"125 PSI"},{"Product Highlights":"120°F Max Temp"}]
Note: This item offers anti-siphon protection
Overall Length of this product is 8-1/4". Overall Length is determined by wall thickness plus the inlet length. Please check Product Overview file for details.
The Woodford 22W3-6-MH Horizontal Freezeless Hot & Cold Wall Faucet lets you have the water you need for your outside tasks throughout the year even in freezing conditions. It has a separate hot and cold inlet tube that allows manual temperature control without the hassles of cross contamination issues. This hot and cold exterior faucet from Woodford is perfect for washing your muddy car, rinsing off your tools or washing your dog with nice warm water. The integral back flow protection device eliminates the need of an add-on vacuum breaker and protects your community from contaminated water. The Woodford 22W3-8-MH Wall Faucet has a rough-in mounting depth of 8†(please refer to the specification sheet for more information). The “W3†designation in the part number signifies a 3/4" Wirsbo inlet tube fitting on the end of both inlet tubes. This freezeless faucet from Woodford has a patented resetting pressure relief valve that stops the faucet casing tube from bursting in cold conditions regardless of outside temperature and even if a hose is inadvertently left attached. This Woodford 22W3-8-MH comes with a metal handle. All Woodford 22 products carry a warranty for 5 years against defects in workmanship and materials. Woodford is a trusted leader in the industry and its products are made in the USA.
Specifications:
Manufactured under one or more of the following
patents: 3,208,715; 3,278,201; 5,590,679; 5,632,303;
6,142,172; 6,532,986 and patents pending
ASSE 1019 Listed
CSA, UPC, cUPC Approved
Not intended for continuous use
Features:
Max pressure - 125 p.s.i.
Max temperature - 120 F
EPDM packing to prevent leaking
Oval, powder-coated, die cast aluminum handle
Stainless steel seat - eliminates wire draw
Standard O size seat washer
No-lead solder
Horizontal Freezeless Wall Faucet
Separated hot and cold inlet tube
3/4 male hose thread
Made in USA
The W3 designation in the part number signifies a 3/4" Wirsbo inlet tube fitting on the end of both inlet tubes.
All Woodford Model 22 products carry a warranty for 5 years against defects in workmanship and materials.
Manufactured under one or more of the following patents: 3,208,715; 3,278,201; 5,590,679; 5,632,303; 6,142,172; 6,532,986 and patents pending, ASSE 1019 Listed, CSA, UPC, cUPC Approved.Hide Description
| Size | 6" |
|---|---|
| Length Inches | 8-1/4" |
| Max Pressure PSI | 125 |
| Wall Thickness | 6" |
