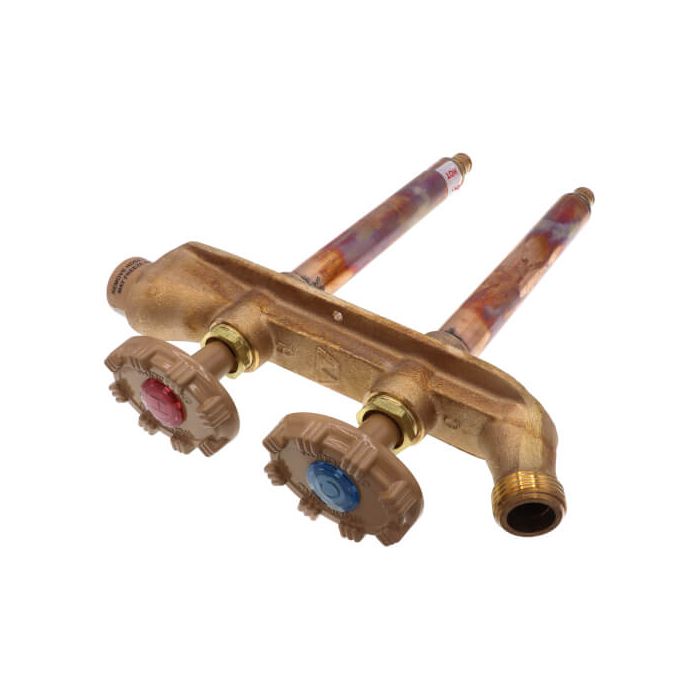

Model V22 8", 1/2" Expansion PEX Inlet Vertical Hot & Cold Anti-Siphon Wall Faucet w/ Metal Handle
In stock
$148.95
[{"Product Highlights":"10\" Length"},{"Product Highlights":"ProPEX Connection"},{"Product Highlights":"8\""},{"Product Highlights":"125 PSI"},{"Product Highlights":"120°F Max Temp"}]
Overall Length of this product is 10". Overall Length is determined by wall thickness plus the inlet length. Please check Submittal Sheet file for details.
The freezeless Model 22 hot and cold faucet is designed
and intended for year-round hot and cold irrigation and
cleaning purposes regardless of outside temperature.
Separate hot and cold inlet tubes allow for manually
operated temperature control with cross contamination
protection. This faucet contains patented pressure relief
valves that prevents the faucet from bursting in freezing
weather should a hose be accidentally left on. The Model
22 contains an integral backflow protection device and
does not require and add-on vacuum breaker.
Model V22 Vertical Mount - Rough Brass for end wall
installation
Product Specifications
Manufactured under one or more of the following
patents: 3,208,715; 3,278,201; 5,590,679; 5,632,303;
6,142,172; 6,532,986 and patents pending
ASSE 1019 Listed
CSA, UPC, cUPC Approved
Not intended for continuous use
Product Features
Patented resetting pressure relief valve prevents the faucet tube from bursting in freezing conditions even if a hose is unintentionally left on.
Built-In Vent Float style Vacuum Breaker
Faucet drains automatically when hose is removed
EPDM packing to prevent leaking
Oval, powder-coated, die cast aluminum handle
Stainless steel seat - eliminates wire draw
Standard “O†size seat washer
Tee Key configuration - (extra charge)
No-lead solder
3/4†male hose thread
MAX PRESSURE - 125 p.s.i.
MAX TEMPERATURE - 120° FHide Description
| Size | 8" x 1/2" |
|---|---|
| Length Inches | 10" |
| Max Pressure PSI | 125 |
| Anti Siphon | Yes |
| Wall Thickness | 8" |
